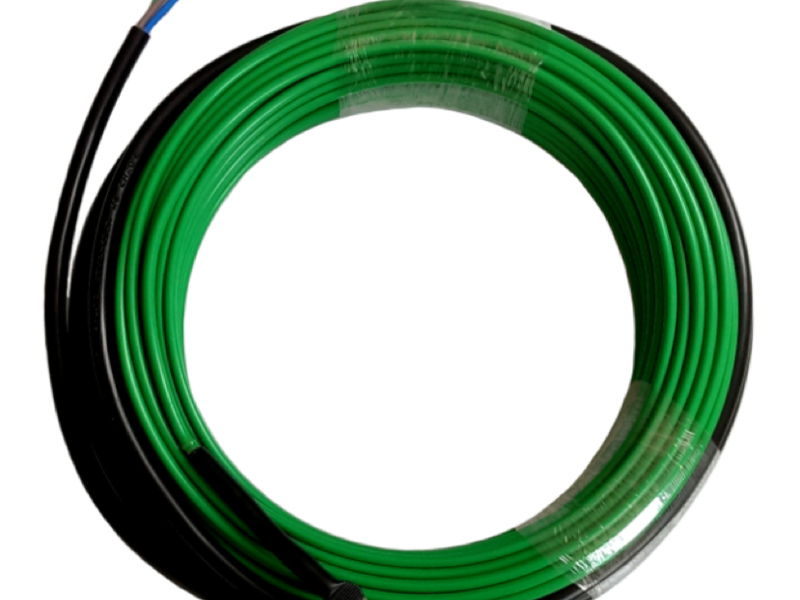

Description

FHCS is the safest, economical and easiest-to-install way to warm floors and provide years of lasting comfort.

Features

  • Single point connection, easy to install
  • Twin conductor cable with screen, no measurable electromagnetic fields
  • Various sizes of floor heating cables are designed to fit the heated area of any floor
  • Compatibility with all standard subflooring materials
  • Safety approved for outdoor and wet locations
  • Durable construction, long life
  • 25-year limited warranty against manufacturing defects for floor warming, 2-year limited warranty against manufacturing defects for other usage

Mat specifications

Cable Construction Single conductor
Operating voltage 230V
Power output 12W/m, 16W/m, 18W/m, 20W/m
Cable diameter 2.6mm
Min. bending radius 25mm
Conductor insulation Fluoropolymer
Outer insulation PVC
Max. ambient temperature
30℃
Min. installation temperature 5℃
Cold lead Two wires, 2.5m length each

Thermostat specifications

Functions On/Off control, digital display, 7-day programmable
Supply Voltage 230V, 50/60 Hz
Max. switching current 16 Amp
Temperature control range 5 to 40°C
Ambient range 0 to 40°C
Floor temperature sensor 2-wire, 3.0m lead wire
