Description

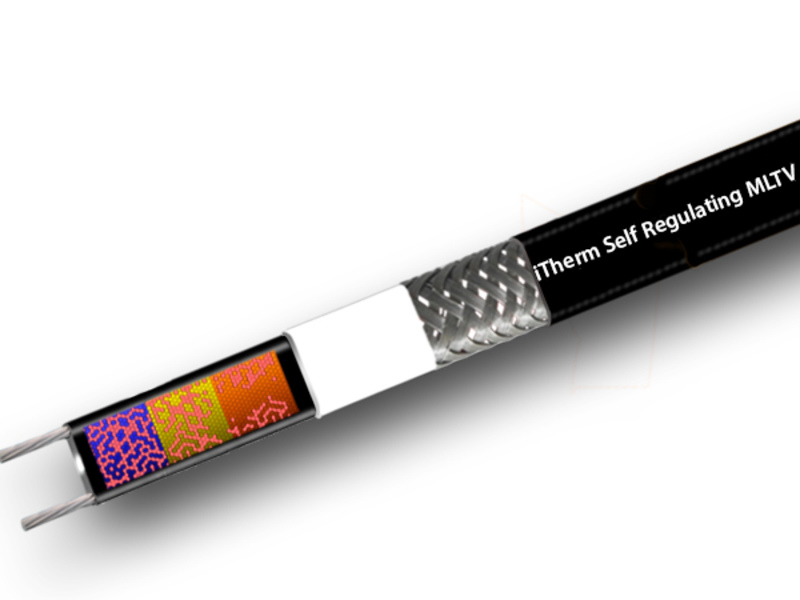

The MLTV family of self-regulating heating cables provides the solution to water pipe freeze-protection for residential application. MLTV heating cables have the maximum maintain or continuous exposure temperature 65℃ and can withstand intermittent exposure to temperatures up to 85℃.

Features

  •  Easy installation due to on-site assembly and can be cut to any length (up to max circuit length) required on site with no wasted cables
  •  Energy efficient, automatically varies it’s power output in response to pipe temperature changes
  •  Self-limiting, without overheating or burnout even while overlapping
  •  Installation in residential, commercial
  •  Very suitable for use on/in small pipes such as home water pipes
  •  2-year limited warranty against manufacturing defects

Application

Area classification Residential
Ordinary
Traced surface type Carbon steel, Stainless steel
Plastic
Painted or unpainted metal
Chemical resistance

For organic corrosives: use -CT (fluoropolymer outer jacket)
For mild inorganic solutions: use -CR (modified polyolefin outer
jacket)
For aggressive organics and corrosives consult your local Xuhui
representative

Specifications

Supply voltage 230V
Contact your local Xuhui representative for data on other voltages
Maximum maintain or
continuous exposure
temperature (power on/off)
65℃
Maximum intermittent
exposure
temperature (power on/off)
85℃
Maximum cumulative exposure 1000 hours
Temperature classification T6
Minimum installation
temperature
-40℃
Minimum bend radius at 20℃: 13mm
at -40℃: 35mm
Product MLTV-C MLTV-CR MLTV-CT
Thickness (mm) 3.9           5.4             4.9
Width (mm) 6.8           8.3             7.8
Weight (g/m)
